Example in the plotting section of documentation leads to completely different result

[goggle]

I have tried to run the example from the plotting example from the documentation http://docs.juliadiffeq.org/stable/basics/plot.html#Example-1:

using DifferentialEquations, Plots
function lorenz(du,u,p,t)
 du[1] = p[1]*(u[2]-u[1])
 du[2] = u[1]*(p[2]-u[3]) - u[2]
 du[3] = u[1]*u[2] - p[3]*u[3]
end

u0 = [1., 5., 10.]
tspan = (0., 100.)
p = (10.0,8/3,28.0)
prob = ODEProblem(lorenz, u0, tspan,p)
sol = solve(prob)
xyzt = plot(sol, plotdensity=10000,lw=1.5)
xy = plot(sol, plotdensity=10000, vars=(1,2))
xz = plot(sol, plotdensity=10000, vars=(1,3))
yz = plot(sol, plotdensity=10000, vars=(2,3))
xyz = plot(sol, plotdensity=10000, vars=(1,2,3))
plot(plot(xyzt,xyz),plot(xy, xz, yz, layout=(1,3),w=1), layout=(2,1))

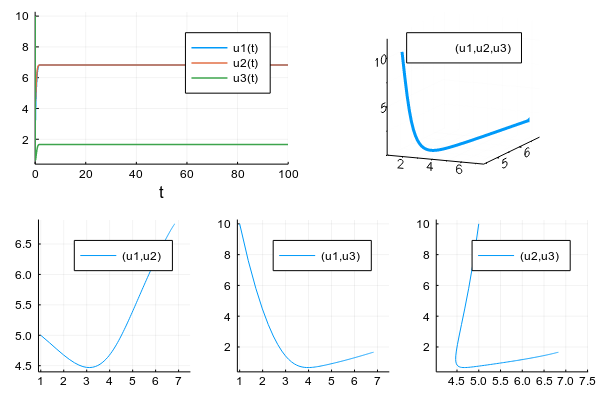

This is the result:

It is completely different from the expected result in the documentation. What is going wrong here?

Also, the second example

f(x,y,z) = (sqrt(x^2+y^2+z^2),x)
plot(sol,vars=(f,:x,:y,:z))

does not work. I get this error:

MethodError: no method matching u_n(::DiffEqArray{Float64,2,Array{Array{Float64,1},1},Array{Float64,1}}, ::Symbol, ::OrdinaryDiffEq.ODECompositeSolution{Float64,2,Array{Array{Float64,1},1},Nothing,Nothing,Array{Float64,1},Array{Array{Array{Float64,1},1},1},ODEProblem{Array{Float64,1},Tuple{Float64,Float64},true,Tuple{Float64,Float64,Float64},ODEFunction{true,typeof(lorenz),LinearAlgebra.UniformScaling{Bool},Nothing,Nothing,Nothing,Nothing,Nothing,Nothing,Nothing,Nothing,Nothing},Nothing,DiffEqBase.StandardODEProblem},CompositeAlgorithm{Tuple{Tsit5,Rosenbrock23{0,false,DiffEqBase.DefaultLinSolve,DataType}},AutoSwitch{Tsit5,Rosenbrock23{0,false,DiffEqBase.DefaultLinSolve,DataType},Rational{Int64},Float64}},OrdinaryDiffEq.CompositeInterpolationData{ODEFunction{true,typeof(lorenz),LinearAlgebra.UniformScaling{Bool},Nothing,Nothing,Nothing,Nothing,Nothing,Nothing,Nothing,Nothing,Nothing},Array{Array{Float64,1},1},Array{Float64,1},Array{Array{Array{Float64,1},1},1},OrdinaryDiffEq.CompositeCache{Tuple{OrdinaryDiffEq.Tsit5Cache{Array{Float64,1},Array{Float64,1},Array{Float64,1},OrdinaryDiffEq.Tsit5ConstantCache{Float64,Float64}},OrdinaryDiffEq.Rosenbrock23Cache{Array{Float64,1},Array{Float64,1},Array{Float64,2},Array{Float64,2},OrdinaryDiffEq.Rosenbrock23ConstantCache{Float64,typeof(identity),typeof(identity)},DiffEqDiffTools.TimeGradientWrapper{ODEFunction{true,typeof(lorenz),LinearAlgebra.UniformScaling{Bool},Nothing,Nothing,Nothing,Nothing,Nothing,Nothing,Nothing,Nothing,Nothing},Array{Float64,1},Tuple{Float64,Float64,Float64}},DiffEqDiffTools.UJacobianWrapper{ODEFunction{true,typeof(lorenz),LinearAlgebra.UniformScaling{Bool},Nothing,Nothing,Nothing,Nothing,Nothing,Nothing,Nothing,Nothing,Nothing},Float64,Tuple{Float64,Float64,Float64}},DiffEqBase.DefaultLinSolve,DiffEqDiffTools.JacobianCache{Array{Float64,1},Array{Float64,1},Array{Float64,1},UnitRange{Int64},Val{:forward},Float64,Val{true}},DiffEqDiffTools.GradientCache{Nothing,Array{Float64,1},Array{Float64,1},Val{:forward},Float64,Val{true}}}},AutoSwitch{Tsit5,Rosenbrock23{0,false,DiffEqBase.DefaultLinSolve,DataType},Rational{Int64},Float64}}}}, ::Array{Float64,1}, ::DiffEqArray{Float64,2,Array{Array{Float64,1},1},Array{Float64,1}})

[ChrisRackauckas]

wrong parameters: p = (10.0,28.0,8/3)

[goggle]

Thanks, this works.
What about the second example? The code

f(x,y,z) = (sqrt(x^2+y^2+z^2),x)
plot(sol,vars=(f,:x,:y,:z))

still fails.

[ChrisRackauckas]

Oh, it just needed to update to not use the automatic naming anymore:

f(x,y,z) = (sqrt(x^2+y^2+z^2),x)
plot(sol,vars=(f,1,2,3))

[goggle]

Ok cool, this works. In my case, the resulting plot gets cropped in a weird way:

And this was not the same problem as this, right?

[ChrisRackauckas]

That indeed is the same problem. The problem is that we used to use @ode_def in those tutorials, but we no longer endorse it, and @ode_def allows you to use things like :x if you named it x in the macro. We could show off the fact that you can pass syms=[:x,:y,:z] though, and then use those names in the plotting functionality and stuff.
